Stone Driller (horizontal)

• Place of Origin:

   China

• Type:

  Quarrying and Earthmoving Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1276751

• Place of Origin:

  China
•

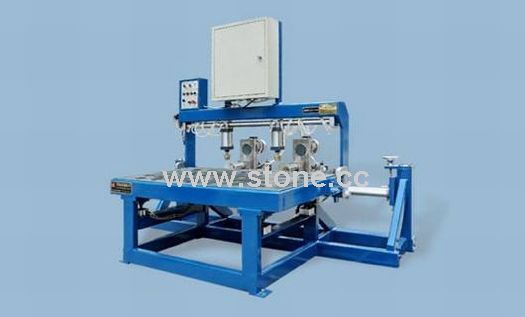

  SZ-PC-16 Stone Driller (horizontal)

  This machine is a drill machine with fixed bolt hole for dry slate hanging, which is a creative machine at home. It uses double high speed drills, automatic feed knife and slate mechanism with air pressure, electronic procedure control and mechanical 3-D fixed position mechanism. Universal roll wheels, which are made in Italy, are installed on the worktable. It is featured as high efficiency, high precision for drilling hole and accurate pitch-row to reach the foreign advanced level as the same product.

  Technical data:
  Drill hole diameter: 3~18 mm
  Drill hole depth: 80 mm
  Dual-drill maximum width between centers: 1600 mm
  Dual-drill minimum width between centers: 150  mm
  Worktable size: 1620 x 1000 mm
  Dimension: 2700 x 1800 x 2100 mm
