Stone Thickness Calibrating Machine

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1276749

• Place of Origin:

  China
•

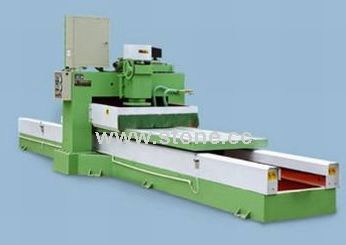

  SXA-100L Thickness Calibrating Machine

  Automatically control machine.

  This machine is for large slabs, using Plano-joint structure; the trolley lead screw actuates to feed automatically. The frequency converter, which is made by Japanese Mitsubishi, can get fully adjustable speed.

  Technical data:
  Grind head diameter: 680 / 880 / 1080 / 1350 mm
  Vertical stroke: 100 mm
  Table feed distance: 2000 / 2500 mm
  Main motor power: 15 / 15 / 18.5 / 22 kw
  Water consumption: 120 L/min
  Weight: 1900 / 2500 / 3300 / 5500 kg
