Manual Edge Cutting Machine

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1276405

• Place of Origin:

  China
•

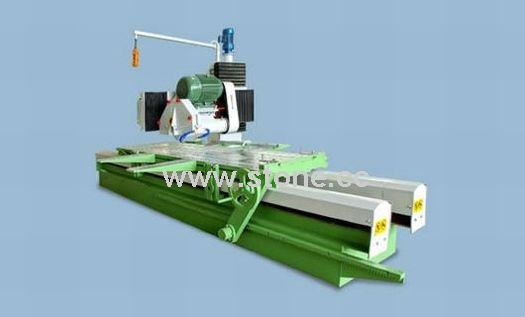

  Manual Edge Cutting Machine type SQA-600

  This machine is for cutting and chamfering slab. The table has the sealed oil filled guide, driven by the rack and pinion moved by the hand wheel, the blade spindle can rotates manually; it has compact structure and easy to move.

  Technical data:
  Item: SQA-600A / SQA-600B

  Blade diameter:  300~600 mm
  Blade vertical stroke: 350 mm
  Worktable size: 2500 x 750 / 3000 x 750 mm
  Main motor power: 11 ~ 15 kw
  Water consumption: 30 L/min
  Dimension: 4000 x 1960 x 1435 / 5000 x 1960 x 1435 mm
  Weight: 2700 / 3000 kgs
